Rate Limits

Rate limits provide fine-grained control over API usage, allowing you to prevent abuse and manage resource consumption effectively. The system supports both key-level and user-level limits with multiple resolution types.

​
Overview

Rate limits in the Datawizz AI Gateway offer:
  • Key-level limits: Apply to the entire API key regardless of user
  • User-level limits: Apply per individual user (requires Client Access with JWT)
  • Multiple resolutions: MINUTE, HOUR, DAY, MONTH
  • Multiple limit types: REQUESTS_LIMIT, TOKENS_LIMIT
  • Parallel enforcement: All configured limits are checked simultaneously

​
Configuring Rate Limits

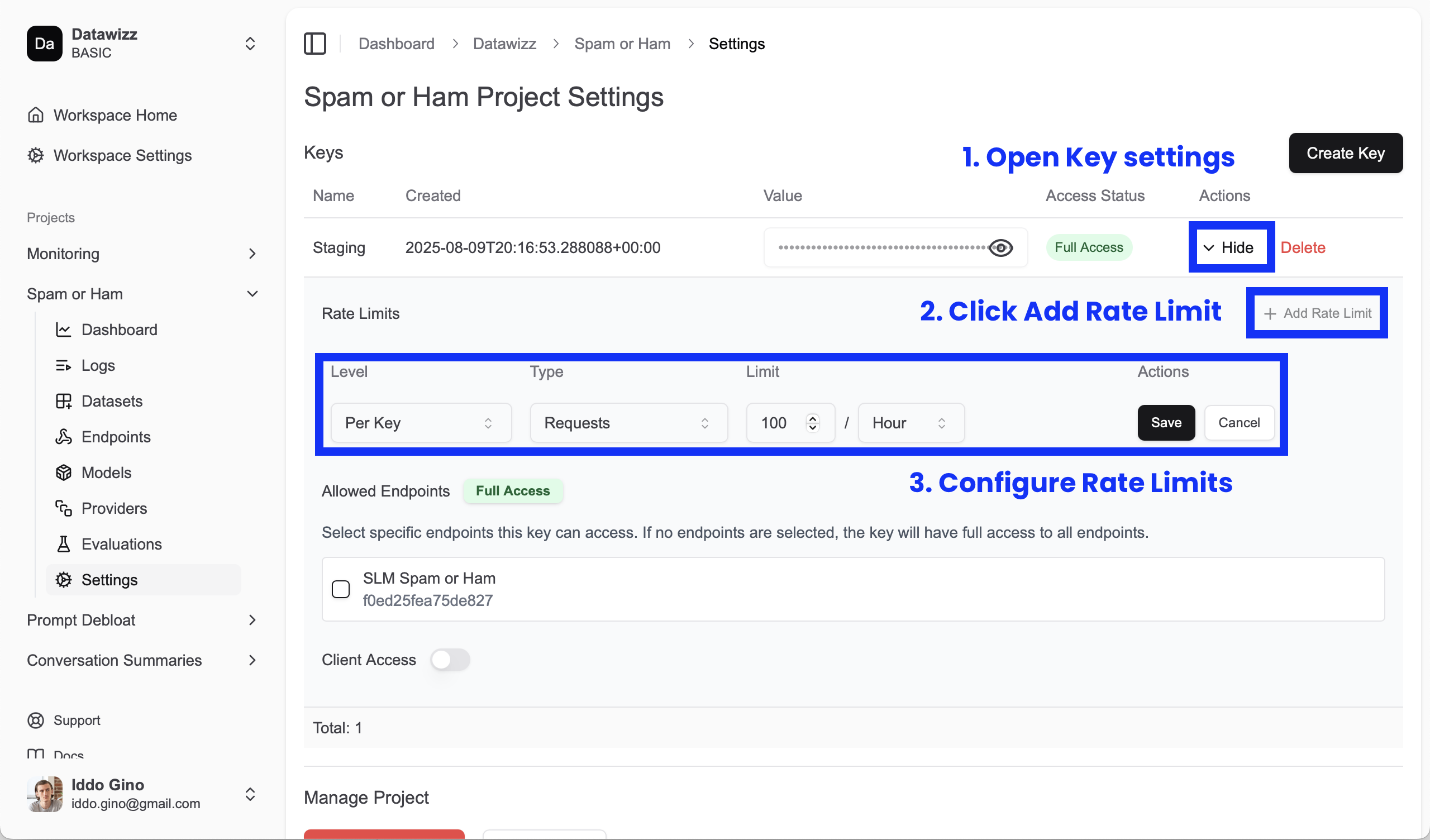

Rate limits are managed at the Project Key level - so you can set different limits for different keys (e.g. production key can have different limits than development key). Configure Rate Limits To add a rate limit to a key:
  1. Go to the Settings page of your project.
  2. Select the key you want to configure.
  3. Click on Add Rate Limit.
  4. Configure the limit type, resolution, and value.
  5. Save the changes.
The limit will be applied immediately and enforced on all requests using that key.
The system collects usage metrics even before you configure rate limits. So when adding a rate limit, it’ll take into account all historical usage data.

​
Limit Types

​
Request Limits

Controls the number of API requests that can be made within a time window. Example: 100 requests per hour
  • Tracks each API call as 1 request
  • Useful for preventing API abuse and managing load

​
Token Limits

Controls the total number of tokens (input + output) consumed within a time window. Example: 10,000 tokens per day
  • Tracks actual LLM token usage
  • Useful for cost control and resource management

​
Resolution Types

Usage tracking is aligned to clock and calendar time — so an hourly limit resets every hour, a daily limit resets at midnight (UTC), and a monthly limit resets at the start of each month. The system supports the following resolutions:
ResolutionDescriptionUse Case
MINUTEPer-minute limitsBurst protection, real-time applications
HOURPer-hour limitsStandard API rate limiting
DAYPer-day limitsDaily usage quotas
MONTHPer-month limitsBilling period controls

​
Rate Limit Levels

​
Key-Level Limits

Apply to the entire API key, regardless of which user makes the request. Use cases:
  • Overall API key quotas
  • Preventing single key abuse
  • Basic rate limiting for simple use cases

​
User-Level Limits

Apply individually to each user identified via JWT (requires Client Access enabled). Use cases:
  • Per-user quotas in multi-tenant applications
  • Fair usage across different users
  • Individual user billing controls
Requirements:
  • When using a project key without Client Access, you must pass a User ID in the request metadat ({"user": "<user_id>"}).
  • When using a project key with Client Access, the User ID is extracted from the JWT claims:
    • sub (standard claim)
    • user_id (custom claim)
    • userId (custom claim)

​
Rate Limit Enforcement

​
Parallel Checking

All configured rate limits are checked simultaneously. If ANY limit is exceeded, the request is blocked. Example scenario:
Configured limits:
- Key-level: 1,000 requests per hour
- User-level: 100 requests per hour

If user has made 99 requests this hour:
- User limit: 99/100 ✅ (allowed)
- Key limit: 850/1,000 ✅ (allowed)
- Result: Request allowed

If user has made 100 requests this hour:
- User limit: 100/100 ❌ (exceeded)
- Key limit: 851/1,000 ✅ (allowed)
- Result: Request blocked (429 status)

​
Response Headers

Rate limit information is included in response headers:
X-RateLimit-Requests-HOUR-Limit: 100
X-RateLimit-Requests-HOUR-Remaining: 73
X-RateLimit-Tokens-DAY-Limit: 10000
X-RateLimit-Tokens-DAY-Remaining: 8547
Header format: X-RateLimit-{TYPE}-{RESOLUTION}-{Limit|Remaining}

​
Usage Tracking

The system proactively tracks usage across ALL possible combinations to enable flexible rate limit configuration:

​
Key-Level Tracking

Always tracks 8 combinations for every request:
  • REQUESTS_LIMIT: MINUTE, HOUR, DAY, MONTH (4 entries)
  • TOKENS_LIMIT: MINUTE, HOUR, DAY, MONTH (4 entries)

​
User-Level Tracking

When JWT user ID is present, tracks additional 8 combinations:
  • Same 8 combinations but scoped to the specific user
  • Total: 16 KV entries per request (8 key + 8 user)
Benefits:
  • Add new rate limits anytime with historical data already available
  • Flexible configuration changes without losing tracking history
  • Supports complex rate limiting scenarios

​
Known Limitations

​
Header Collisions

When multiple rate limits have the same type and resolution, response headers will collide: Problematic configuration:
- Key-level: 100 REQUESTS per HOUR
- User-level: 50 REQUESTS per HOUR
Result:
  • Both limits are enforced correctly ✅
  • Headers only show the last processed limit ❌
  • Client sees: X-RateLimit-Requests-HOUR-Limit: 50 (user-level)
  • Client doesn’t see key-level limit headers
Workarounds:
  • Use different resolutions (HOUR vs DAY)
  • Use different types (REQUESTS vs TOKENS)
  • Be aware that enforcement works correctly despite header visibility issues

​
Error Responses

​
Rate Limit Exceeded

HTTP/1.1 429 Too Many Requests
Content-Type: application/json
X-RateLimit-Requests-HOUR-Limit: 100
X-RateLimit-Requests-HOUR-Remaining: 0

{
  "error": "Rate limit exceeded: 100 requests per hour"
}

​
Troubleshooting

​
Common Issues

Rate limits not working:
  • Verify rate limits are properly configured and enabled
  • Check that project key has rate limits associated
  • Ensure usage tracking KV store is accessible
Unexpected rate limit blocks:
  • Check if multiple limits are configured (all must pass)
  • Verify user-level limits if Client Access is enabled
  • Review recent usage patterns and current limit values
Missing rate limit headers:
  • May indicate header collision with multiple same-type limits
  • Check rate limit configuration for duplicates
  • Enforcement still works even if headers are missing
User-level limits not working:
  • Verify Client Access is enabled on the project key
  • Ensure JWT contains valid user identifier (sub, user_id, or userId)
  • Check that JWT is properly signed and validated
